Bulldozers Parts Arkansas - A popular type of industrial equipment is a bulldozer. Crawler tractors run on continuous track as opposed to relying on wheels, although, wheeled versions are also on the market. The large metal plate attached to the front of the bulldozer is called the dozer blade. Alteration projects and construction sites rely on dozer blades to transport gravel, dirt and other materials. The back end of the bulldozer often has giant metal teeth used to break up hardpacked materials.
Specifics
The track system on a common bulldozer offers phenomenal maneuvering abilities and excellent traction on uneven ground and unstable or rough surfaces. The special transmission components let the machine function with increased traction. The track width evenly distributes the weight in unstable applications to prevent the industrial machine from sinking. Swamp tracks refer to tracks that have increased widths, suitable for specific applications. Bulldozers are often utilized in land clearing applications, road construction, mining operations and other jobs that require stable and powerful equipment to transport large volumes of material.
The dozers that rely on a wheeled system typically consist of four wheels that use a 4WD system combined with an articulated hydraulic steering mechanism. The dozer blade is mounted in front of the articulation joint and is operated on a hydraulic system, rather than mechanical.

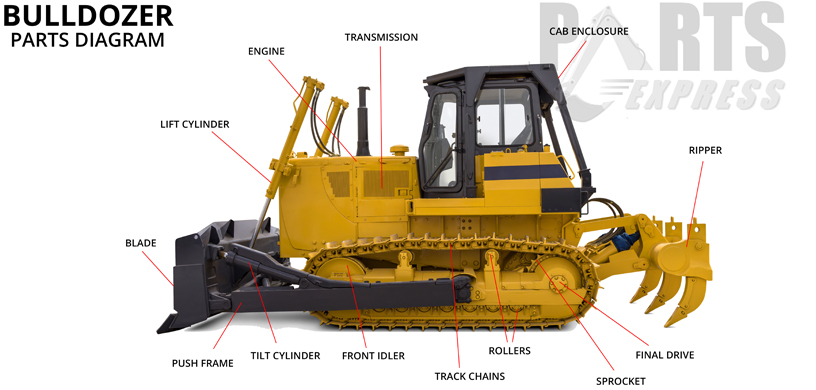

The main tools that distinguish the dozer from other construction machine are the dozer blade and the ripper.
The Dozer Blade
The dozer blade is a large, metal plate mounted at the front of the bulldozer. Its purpose is to push heavy objects and material. Gravel, dirt, snow and rubbish are commonly pushed into new locations with bulldozers. Typically, there are 3 different kinds of dozer blades including the straight blade, the semi-U blade and the universal blade.
The universal blade, or U blade is tall, curved and has large wings on the side used to carry extra material. The straight or S blade is much shorter than the U blade and has no wings on the side or lateral curve, making it ideal for earth grading jobs. The semi-U blade, or S-U blade, is a combination blade which is shorter, is less curved and has side wings, but which are smaller than those on the U blade. It is generally used for pushing boulders or large rock piles.
A dozer blade is fitted either horizontally to the tractor or at an angle. The angle of the dozer blade can be adjusted with tilt cylinders. Dozer blades can be sharpened to enable cutting items including tree stumps and roots. Angledozer blades are pushed forward on one side (hence the name) to clear materials away from the path of the machine. Angledozers are commonly used for snow removal.
A variety of bulldozers are equipped with a bull blade. A bull blade is a reinforced centre section of the bulldozer. This feature allows the machine to push another heavy piece of equipment known as a scraper for earthmoving applications.
Dozer blades are common attachments on a variety of military vehicles. Several military vehicles are designed to allow a dozer blade to be affixed to the front of the vehicle, such as combat engineering vehicles, artillery tractors and battle tanks. Mounting a dozer blade on a battle tank enables it to push mines and obstacles out of the way or create combat positions by digging shelters. It can help establish a protective barrier against obstacles, artillery and explosive items, making it a valuable machine for military applications.
The Dozer Ripper
The shank or dozer ripper is the substantial tool situated on the bulldozers’ back with long teeth. There are single shank options on dozer rippers or groups with two or more shanks available depending on the application required. The giant ripper is the name given to the single shank design that is often needed for dense applications. The multi-shank options are called multi-shank rippers.
The boot refers to the tip of the shank and consists of a detachable metal piece. This design allows the boot to be replaced instead of the entire shank whenever it becomes broken or dull.
The dozer ripper breaks up concrete, rock, solid objects and dirt into smaller pieces to facilitate easier bulldozer transport. This combination enables projects to be completed faster.
In farming, a dozer ripper is used to break up rock and very dense earth to allow for ploughing and planting. In certain locations in New Zealand and Italy, the dozer ripper helps to access ancient lava flows that are rich in nutrients and normally would not be able to be farmed due to the density of the ground. The top layer of lava rock is loosened up with the ripper to create farmable land.
Bulldozer Adaptations
Adaptations to the bulldozer over the years have enabled it to become useful for numerous applications.
The first bulldozer design was too large for working in confined spaces such as mining applications. This limitation lead to the creation of a smaller bulldozer design which allowed for maneuvering in tight spaces. Very small, light bulldozers are sometimes referred to as calfdozers.
Snowier locations including ski hills rely on a lighter bulldozer version for snow removal and winter slope preparation.
The loader tractor is another popular adaptation. The loader tractor consists of replacing the dozer blade with a sizeable bucket and using hydraulic arms for raising and lowering. This adapted bulldoze is now often referred to as a Drott, trackscavator or track loader and frequently used in loading rocks, gravel and earth into dump trucks.
A stump buster is one of the less common bulldozer attachments. This attaches to the rear of the bulldozer. It is a single spike, protruding horizontally, used to split tree stumps for removal. These are used primarily by bulldozers working on land clearing projects. In those circumstances, the bulldozer also has a brush-rake blade.
Even with numerous bulldozer adaptations on the market, the original form of the machine is still popular in road carving, ground leveling, earthmoving and deforestation projects. Heavy bulldozers are primarily used to level terrain in preparation for construction. The construction is completed mostly by smaller bulldozers and loader tractors.
Origins
In 1923, the first bulldozer was designed when farmer James Cummings joined forces with a draftsman named J. Earl McLeod. The dozer blade was the initial design they created and was built to be attached to an existing tractor in order to plow fields. They built the original bulldozer and it can be viewed in Kansas’ city park, Morrowville. The team filed for a US patent on their bulldozer attachment later that year and a patent was granted in January 1925. At the time, it was common for tractors to run on a track system. It was this initial tractor version, complete with extreme maneuverability that helped contribute to the World War I armored tank.
Custom made attachments became available on tracked and wheeled tractors alike by 1929. However, the popularity of the bulldozer attachment did not occur until the mid-1930s. Hydraulic cylinders were introduced before 1940 and the term bulldozer referred to the whole machine who’s popularity greatly expanded by the 1950s.
Becoming popular for all types of construction applications, bulldozers grew into a variety of different stronger and larger models. Eventually, many companies such as John Deere and Caterpillar began to manufactured large tracked and wheeled bulldozers. The manual transmission was replaced over time with automatic transmissions and electric motors and hydraulic cylinders eventually replaced cable winch systems. More effective and accurate control systems were introduced thanks to these upgrades. Upgrades with GPS technology have been added to enhance bulldozing tasks with improved grade control.
What began as a tractor attachment to be used for farming jobs has transformed into one of the most versatile machines in civil engineering, mining, construction, military operations and building maintenance.
