Loader Parts Arkansas - Loaders are versatile machines used in a variety of industries. These machines are responsible for loading and transporting items such as gravel, raw materials, snow, asphalt, rock, sand, grain, woodchips, demolition debris and more. Loaders transport material into rail cars, dump trucks, feed-hoppers and conveyor belts. Many different loader models are on the market including shovel, front-end loader, wheel-loader, skid-steer, bucket loader, scoop, front loader and skip loader.
Description
This machine is part of the tractor family features a wide bucket attached to the front of the machine that is connected to the endo of two booms or arms. Some models have wheels and others rely on tracks. This machine can scoop up material such as gravel or dirt or sand and transport it to another location without pushing it across the ground. Loaders move stockpiled items from ground level and transfer it to a dump truck or open trench. Removable or permanently mounted attachments make up the loader assembly. Additional tools may be interchanged for the bucket to provide more versatility. Forks can be mounted to lift shipping containers or pallets. A loader can utilize a hydraulically operated clamshell bucket to facilitate scraper and light dozer jobs. Various devices including a bale grappler can take care of large bales of straw or hay.
The term front loader is given to sizeable loaders that feature a front bucket. Smaller loader tractor models can utilize a backhoe attachment and are referred to as loader backhoes, backhoe loaders or JCBs. This equipment is utilized for laying pipe, loading trucks, digging, clearing debris and similar jobs. The loader is not as efficient as an excavator or backhoe as it is unable to dig lower than its’ wheel level. The capacity of loader buckets ranges from 0.5 to 36 cubic meters. Between a backhoe loader and front loader, the front loader model has more bucket capacity available.
There are loader models available with tracks or others that feature wheels, depending on which application you are going to use it for. These models are useful in construction applications where rubber wheels would be subsequent to damage from sharp-edged items. Wheels provide better mobility and speed and less damage to paved surfaces compared to tracks; however, tracks provide better traction. In construction zones, loaders are responsible for moving materials and tools for digging around the site.
Front loaders are often used for snow removal from parking lots, sidewalks and other locations that are too narrow for heavy equipment. These machines are often utilized as a snowplow with the correct attachment or use a bucket or snow-basket to load snow into the compartment of a snow plow or dump truck.
Specialized “high-tip” buckets are used to transport lightweight items including woodchips, pea gravel and peat, ensuring easier emptying while the bucket is extended and full height. Front loaders have gained popularity over the last 20 years within earthmoving and urban engineering applications. A variety of loader sizes are on the market to handle numerous jobs.
Large loaders do not rely on automotive steering mechanisms unlike standard tractors with a front bucket or backhoes. This model of loader utilizes articulated steering with a hydraulically actuated pivot point that is located between the front and rear axles. This design enables the front axle to be solid and the greater weight to be carried by the machine. Greater maneuverability is offered with the articulated steering. The attachment and the front wheels rotate along the same axis to allow the operator better load steering abilities after the machine is in position. After the machine is turned to the side and the heavy load is raised, there is more risk of turning over towards the wide side.

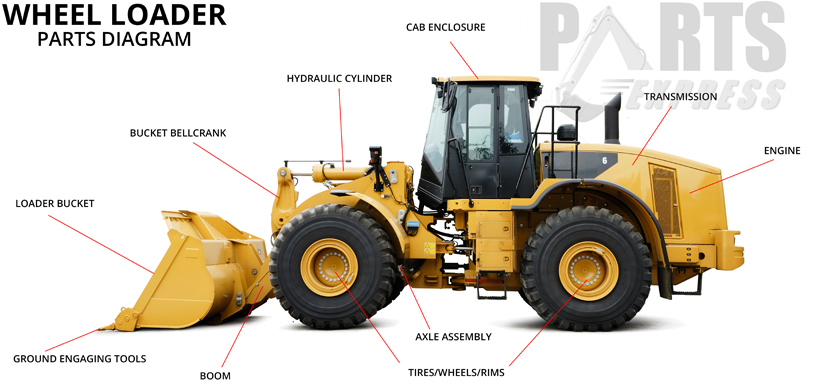

Major component items include the engine that is typically diesel, hydraulic items such as pumps, motors and valves along with transmission components including wheels, tracks, axles, motors, gearbox, pumps etc.
The loader engine controls the hydraulics and the transmission which bring movement to the front attachments such as forks, sweepers, buckets and the like. Each loader model has particular lifting capabilities and can conquer manure, sand, gravel or other items.
Wheel Loaders
The first wheel loader consisted of a tractor with a rear-wheel drive. New wheel loaders have the same front and rear wheel dimensions with articulation.
Armored Wheel Loaders
Many military jobs use an armored Caterpillar 966 wheel loader to handle construction jobs and combat engineering tactics. They are seen removing roadblocks and building fortifications and bases. Armor plating is placed on the machine to offer protection from Molotov cocktails, rocks, stones and gunfire. Certain elite police squads have relied on wheel loaders for military use to open routes and lead the way for police. Wheel loaders that utilize remote controls can be used by military and police departments.
Tractor Front Loaders
A loader addition may accompany tractors that have fifty to two-hundred HP. These tractor loaders were created to achieve a variety of farming tasks. These tractor loaders can complete a variety of jobs and are more economical than telehandler equipment. Tractor loaders can utilize a variety of attachments such as hydraulic grabs and spikes to facilitate bale handling and silage applications. Bucket attachments are often used for agricultural jobs and pallet transportation can be facilitated with fork attachments.
Compact Front End Loaders
Front-end loaders or FELs are commonly added to compact utility tractors or CUTs and farm tractors. Compact models are small and offer 18 to 50 HP, making them ideal for landscaping and groundskeeping. The traditional dogleg design, curved arm and semi-curved options keep front-end loaders flexible to complete a variety of jobs.
There are CUTs available with front-end loaders that can complete a wide variety of tasks, especially when they utilize different attachments. To facilitate better digging capacity, a tooth bar may be added to the front edge of the machine. The quick attach system or QA and quick coupler allows attachments and buckets, bale spears and pallet forks to be removed easily and attached.
A front-end loader known as an LHD or load-haul-dump unite is helpful in compact mining situations. It relies on many different buckets and operates with electric or diesel engines.
Skid Loaders
A small engine powered loader that has a rigid frame is called a skidsteer, skid loader or skid-steer loader. It has lift arms that can easily attach to a variety of tools. These units consist of a 4-wheeled vehicle that mechanically synchronizes on either side. Each set of right and left wheels are capable of being driven independently. The wheels typically maintain a fixed, straight alignment on the body without a separate steering option.
Differential steering is responsible for conducting turning maneuvers. The right and left wheel pairs operate at different speeds, causing the machine to turn by dragging or skidding fixed-orientation wheels along the ground. The strong wheel bearings and rigid frame prevent torsional forces that occur from the dragging motion. High ground friction created by skid steers and tracked vehicles can destroy fragile or soft road surfaces.
There are specifically designed wheels that convert low ground friction. The ultimate maneuverability can be accomplished by some models of skid-steers with zero-radius turns and pirouette turning capabilities. This machine is ideal for jobs that need agile and compact equipment. Some models use tracks in place of wheels and are called multi-terrain loaders.
The lift arms in skid loaders are situated alongside the operator with pivot points located behind the driver’s shoulders. Due to the operators’ close proximity to moving booms, earlier models were not as safe as conventional front loaders, specifically while entering and exiting the equipment. Thankfully, today’s machines offer more safety features and totally enclosed cabs to maintain safety. These machines are similar to other front loader models and are capable of transporting items from one location to the next via the bucket for pushing items across the ground or loading them into a trailer.
History of Tracked Loaders
A tracked loader features a chassis with a loader for loading and digging material. There have been three main design evolutions for this machine, each one improving versatility and efficiency. This equipment is capable of numerous tasks, making it a popular addition to fleets.
The first tracked loaders were created from track tractors; however, they offered less ability to dig into harder ground surfaces, making them similar to bulldozers during that time. Most often, tracked loaders were used for moving stockpiled items into loading trucks and rail cars.
Everything changed with the addition of hydraulic integration from providing power to the loader linkages and increasing overall power. The ability of the machine to offer bucket down pressure has been enabled thanks to the introduction of the hydraulic system, facilitating greater digging within compact locations. The engine weight was located initially along the front are of the tracks along with the other heavy loader equipment. This situation placed too much wear and tear on the front idler wheels and the undercarriage. The design of tracked loaders was further improved with the hydrostatic drive system becoming the second major design innovation.
Swingloaders
A swingloader is a popular piece of equipment that uses a rigid frame and a swinging boom. The boom is capable of travelling 180 degrees or more. The boom can travel up to 180 degrees or farther, depending on the model. This equipment is used mostly in railway applications for laying rail. There are a variety of attachments including buckets, forks and magnets that can be added on for more diverse applications. Agricultural applications rely on smaller machines. Swingloaders are useful in limited space applications. This loader is able to deposit and lift on all sides.
